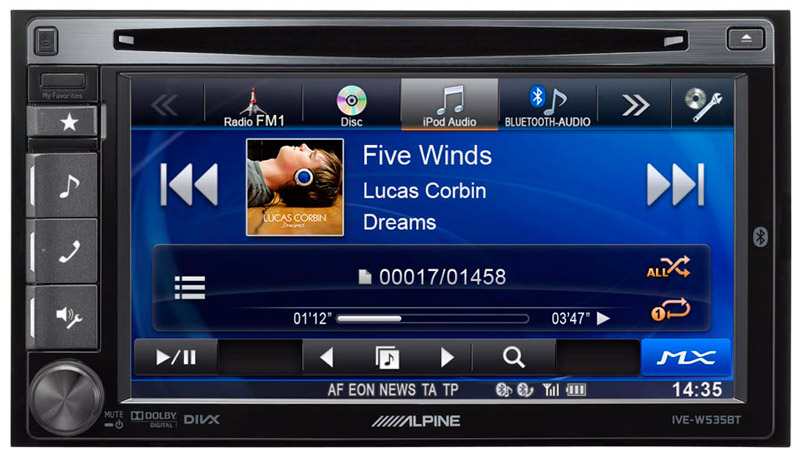

This Mobile Media Station is designed for full AV media enjoyment. Excellent sound quality complements its wide compatibility, including built-in Bluetooth and optional DVB-T.
Τεχνικά Χαρακτηριστικά
Tuner
Memory Presets: Preset Stations (FM:18 / MW:6 / LW:6)
Memory: Auto Memory
Seek Mode: Local / DX Selection
RDS
RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT
BLUETOOTH®
Built-in BLUETOOTH® Module: BLUETOOTH Module Built-In
Hands Free Calling: HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection: Hands Free Phone and Music Streaming
Phone Book Synchronization
Speed Dial: 4 Memory Pre-sets
Multiple Phone Number Registration: 5 Phone Number Registration Possibility
Device Name Display
Auto Answer
Call History Display: Dialled Call / Received Call / Missed Call
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 18 Languages
Firmware Updatable
Microphone: Microphone Included
Made for iPod® / iPhone®
Compatibility for iPod/iPhone: Made for iPod touch 4th/3rd/2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
Connection: KCU-461iV Required (Sold separately)
Music & Video Playback Compatible
Available Selections: Playlist/Artist/Album/Song/Podcast/Genre/Composer/Audiobook
Alphabet Search
Artwork Display
Direct Up/Down: Playlist/Artist/Album/Genre/Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging
Works with Nokia
Works with supported Nokia (Symbian™) phones : Mass Storage Mode
Connection Type: Micro USB Connection. Requires KCU-230NK (Sold separately)
Music Playback: MP3/WMA/AAC Playback
File/Folder Name Search
Tag Info Search
Folder Up/Down
M.I.X. Random Play
Repeat
Battery Charging
Disc Player
Disc Type: DVD/CD Player
Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/RW
Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
M.I.X. Random Play
Repeat
DVD Direct Menu Control
CD Text Display
CD Text Name Search
DAC: 24 Bit DAC
USB Media Connection
USB Connection: USB Extension Cable Included
Music & Video Playback Compatible
Music Playback: MP3/WMA/AAC Playback
Video Playback: DivX Playback
File/Folder Name Search
Tag Info Search
Folder Up/Down
M.I.X. Random Play
Repeat
Sound Tuning
Bass Engine™
Subwoofer Level Adjustment
Subwoofer Phase Select
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
9-band Parametric Equalizer
Digital Time Correction
Digital Crossover Setting
Customized Sound Setting by Car Type
MediaXpander
Application Volume Level Setting
Sound Setting Data Download
General
Power Output: 4 x 50 W High Power Amplifier
Display: 6.1?? WVGA High Resolution Display
White LED Backlighting System
Control Type: Touch, Drag, Flick
My Favourites Function
Automatic Setting Change (2 Users)
Display Colour Setting: 5 Background Colours (Blue/Red/Amber/Green/Black) Selectable
High Grade Audiophile Design
PreOut: 3 PreOuts (2V, Front/Rear/Subwoofer)
AUX-Out: 1 A/V AUX Output
AUX-In: 1 A/V AUX Input
Steering Wheel Remote Control Ready
OEM Sub-display Ready
Remote Control Ready
Camera Connection
Camera Guide Line Adjustment
Rearview Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast Adjustment
Menu Language: 18 Languages
Clock
Auto Dimmer
Security Code Anti-theft
Firmware Updatable
Detachable DIN Trim Plate
Detachable Face Plate
Power Antenna Lead
Remote Turn-On
Προδιαγραφές
Screen
Screen Size: 6.1 inch Wide
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Effective Number of Picture Elements: 99.99 %
Illumination System: White LED Backlighting
Colour System: NTSC, PAL
Max Power Output Ratings
Max Power Output: 4 x 50 W
FM Tuner
Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB
MW Tuner
Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf
LW Tuner
Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf
Disc Player
Frequency Response: 5 -20k Hz ±1 dB
Channel Separation (at 1kHz): 85 dB
Dynamic Range (at 1kHz): 95 dB
Total Harmonic Distortion (at 1kHz): 0.008%
Wow & Flutter (%WRMS): B.M.L.
Signal-to-Noise Ratio: 100 dB
Horizontal Resolution: 500 lines or greater
Video Output Level: 1 Vp-p (75 ohms)
Signal-to-Noise Ratio (Video): DVD: 60 dB
USB
USB Requirements: USB 1.1/2.0
Max. Power Consumption: 1,000 mA
USB Class: Mass Storage Class, Play From Device
File System: FAT 12/16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ??.m4a?? File
DivX Decoding: ??.divx??, ??.avi?? File
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic Range (at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB
BLUETOOTH®
BLUETOOTH® Version : Bluetooth V2.1+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
Sound Tuning
Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9 ms (0.1ms step)
Parametric Equalizer (Band 1): 20 - 100 Hz
Parametric Equalizer (Band 2): 63 - 315 Hz
Parametric Equalizer (Band 3): 125 - 500 Hz
Parametric Equalizer (Band 4): 250 - 1k Hz
Parametric Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric Equalizer (Gain): -7 to +7
Application Volume Level Setting: -14 to +14
General
Power Requirement: 14.4 V.DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2 V / 10k Ohms
Aux Audio Output Level: 1.2 V / 10k Ohms
Maximum Mounting Angle: 30°
Weight: 2.3 kg
Dimensions
Din Size: 2DIN
Chassis Size (W x H x D) mm: 178 x 100 x 165 mm Nose Piece Size (W x H x D) mm: 170 x 95 x 18.5 mm |
